BNC Patch Panels
Patch Panel, with Isolated BNC(f)-BNC(f) Thru Adapters
| Panel Size | No of Adapters | Description | Order Code |
|---|---|---|---|
| 19" 1U | 12 | 1 Row of 12x BNC(f) | P00LF12 |
| 19" 1U | 16 | 1 Row of 16x BNC(f) | P00LF16 |
| 19" 1U | 20 | 2 Rows of 10x BNC(f) | P00LF20 |
| 19" 1U | 24 | 2 Rows of 12x BNC(f) | P00LF24 |
| 19" 1U | 32 | 2 Rows of 16x BNC(f) | P00LF32 |
| 19" 1U | 40 | 2 Rows of 20x BNC(f) | P00LF40 |
| 19" 1U | 48 | 2 Rows of 24x BNC(f) | P00LF48 |
| 19" 2U | 40 | 2 Rows of 20x BNC(f) | P00IF40 |

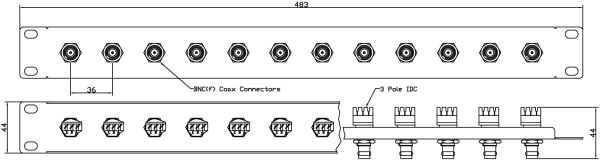

Patch Panel, with Baluns BNC(f)-Krone IDC, 2-8Mbit/sec
| Panel Size | No of Adapters | Description | Order Code |
|---|---|---|---|
| 19" 1U | 12 | 1 Row of 12x BNC(f)-IDC | P00BA0112 |
| 19" 1U | 16 | 1 Row of 16x BNC(f)-IDC | P00BA0116 |
| 19" 1U | 20 | 2 Rows of 10x BNC(f)-IDC | P00BA0120 |
| 19" 1U | 24 | 2 Rows of 12x BNC(f)-IDC | P00BA0124 |
| 19" 1U | 32 | 2 Rows of 16x BNC(f)-IDC | P00BA0132 |
| 19" 1U | 40 | 2 Rows of 20x BNC(f)-IDC | P00BA0140 |
| 19" 1U | 48 | 2 Rows of 24x BNC(f)-IDC | P00BA0148 |
| 19" 2U | 40 | 2 Rows of 20x BNC(f)-IDC | P00BL0140 |
Patch Panel, empty with BNC(f) Bulkhead holes
| Panel Size | No of Adapters | Description | Order Code |
|---|---|---|---|
| 19" 1U | 12 | 1 Row of 12x BNC(f)-IDC | JS31X12BNC |
| 19" 1U | 16 | 1 Row of 16x BNC(f)-IDC | JS31X16BNC |
| 19" 1U | 20 | 2 Rows of 10x BNC(f)-IDC | JS32X10BNC |
| 19" 1U | 24 | 2 Rows of 12x BNC(f)-IDC | JS32X12BNC |
| 19" 1U | 32 | 2 Rows of 16x BNC(f)-IDC | JS32X16BNC |
| 19" 1U | 40 | 2 Rows of 20x BNC(f)-IDC | JS32X20BNC |
| 19" 1U | 48 | 2 Rows of 24x BNC(f)-IDC | JS32X24BNC |
| 19" 2U | 40 | 2 Rows of 20x BNC(f)-IDC | JS72X20BNC |
Connectors for BNC Patch Panel Mounting
| Description | Order Code |
|---|---|
| BNC(f) Bulkhead connector for BT3002 | J00F31-3002 |
| BNC(f-f), Isolated Thru Adapter, 1.5GHz | A00IF093 |
| BNC(f-f), Isolated Thru Adapter, 3GHz | A00IC117 |
| Balun, BNC(f) to Krone IDC 75/120ohms | B13019010 |
| BNC(f-f) U-Link, 26.64mm Pitch | A000409 |
Features of BNC Patch Panels
- Isolated BNC(f)-(f) Adaptors
- Mounts in Standard 19” Rack
- 75Ω Types Available from Stock
- 26.4µm Spacing Suits U-Links
- RoHS Compliant
- 10, 12, 16, 20, 24, 32, 40 & 48 Ports
- Contact Plating: Gold over 5µm Nickel
- Operation Temperature: -30°C to 75°C
- 50Ω Adaptor Option also Available
- Zinc Sealed, Black Powder Coated Steel
Comparison of Consumer and Carrier Grade Options
| Carrier Grade | Consumer Grade |
| All Parts Precision Machined | Industry Standard BNC |
| BNC(f) to IEC 169-8 | Gold Plated Pin |
| Gold Plated Pin | Nickel plated Die Cast Body |
| SWR < 1.2 @ 500MHz | Nylon Thread |
| Teflon Insulators | |
| Metal Threads |
BNC Patch Panels Port Configuration Options
1U, 19” Panels with 1 Row of BNC(f) Connectors available in 12 and 16 ports
1U, 19” Panels with 2 Rows of BNC(f) Connectors available in 20, 24, 32, 40 and 48 ports
2U, 19” Panels with 2 Rows of BNC(f) Connectors available in 20, 32 and 40 ports
