U-Links

U-Links

BNC U-Links 20.64mm Pitch

Description Order Code
BNC(m)-BNC(m) (20.64mm) A01UA20
BNC(m)-BNC(m) with ZZdB (f) monitor rear A01HA20-ZZ
BNC(m)-BNC(m) with ZZdB (f) monitor side A01FA20-ZZ

1.6/5.6 Screw Coupling U-Links, 15mm pitch

Description Order Code
1.6/5.6(m-m) screw coupling (15mm) A11UB15
1.6/5.6(m-m-f) with ZZdB (f) monitor rear A11HB15-ZZ
1.6/5.6(m-m-f) with ZZdB (f) monitor side A11FB15-ZZ

1.6/5.6 Snap Coupling U-Links, 15mm pitch

Description Order Code
1.6/5.6(m)-1.6/5.6(m) snap coupling (15mm) A15UB15
1.6/5.6(m-m-f) with ZZdB (f) monitor rear A15HB15-ZZ
1.6/5.6(m-m-f) with ZZdB (f) monitor side A001717/15/2/N

1.6/5.6 Push Coupling U-Links, 15mm pitch

Description Order Code
1.6/5.6(m-m) push coupling (15mm) A17UB15
1.6/5.6(m-m-f) with ZZdB (f) monitor rear A17HB15-ZZ
1.6/5.6(m-m-f) with ZZdB (f) monitor side A17FB15-ZZ

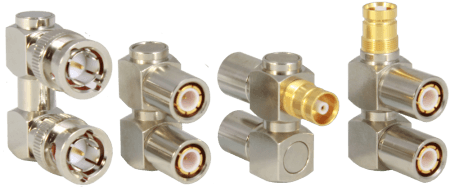

BNC and 1.6/5.6 U-Links both with and without monitor

A01UA20 U-Link

BNC(m)-BNC(m), 20.64mm Pitch

 Product Sheet
A01HA20ZZ Line Drawing

A01HA20-ZZ U-Link

BNC(m)-BNC(m) with ZZdB (f) Monitor Rear, 20.64mm Pitch

 Product Sheet
A01FA20ZZ Line Drawing

A01FA20-ZZ U-Link

BNC(m)-BNC(m) with ZZdB (f) Monitor Side, 20.64mm Pitch

 Product Sheet
A11UB15 Line Drawing

A11UB15 U-Link

1.6/5.6(m-m) Screw Coupling, 15mm Pitch

 Product Sheet
A11HB15ZZ Line Drawing

A11HB15-ZZ U-Link

1.6/5.6(m-m-f) with ZZdB (f) Monitor Rear, 15mm Pitch

 Product Sheet
A11FB15ZZ Line Drawing

A11FB15-ZZ U-Link

1.6/5.6(m-m-f) with ZZdB (f) Monitor Side, 15mm Pitch

 Product Sheet
A15UB15 Line Drawing

A15UB15 U-Link

1.6/5.6(m)-1.6/5.6(m) Snap Coupling, 15mm Pitch

 Product Sheet
A15HB15ZZ Line Drawing

A15HB15-ZZ U-Link

1.6/5.6(m-m-f) with ZZdB (f) Monitor Rear, 15mm Pitch

 Product Sheet
A001717-15-2-N Line Drawing

A001717/15/2/N U-Link

1.6/5.6(m-m-f) with ZZdB (f) Monitor Side, 15mm Pitch

 Product Sheet
A17UB15 Line Drawing

A17UB15 U-Link

1.6/5.6(m-m) Push Coupling, 15mm Pitch

 Product Sheet
A17HB15ZZ Line Drawing

A17HB15-ZZ U-Link

1.6/5.6(m-m-f) with ZZdB (f) Monitor Rear, 15mm Pitch

 Product Sheet
A17FB15ZZ Line Drawing

A17FB15-ZZ U-Link

1.6/5.6(m-m-f) with ZZdB (f) Monitor Side, 15mm Pitch

 Product Sheet
